ID # 17797802

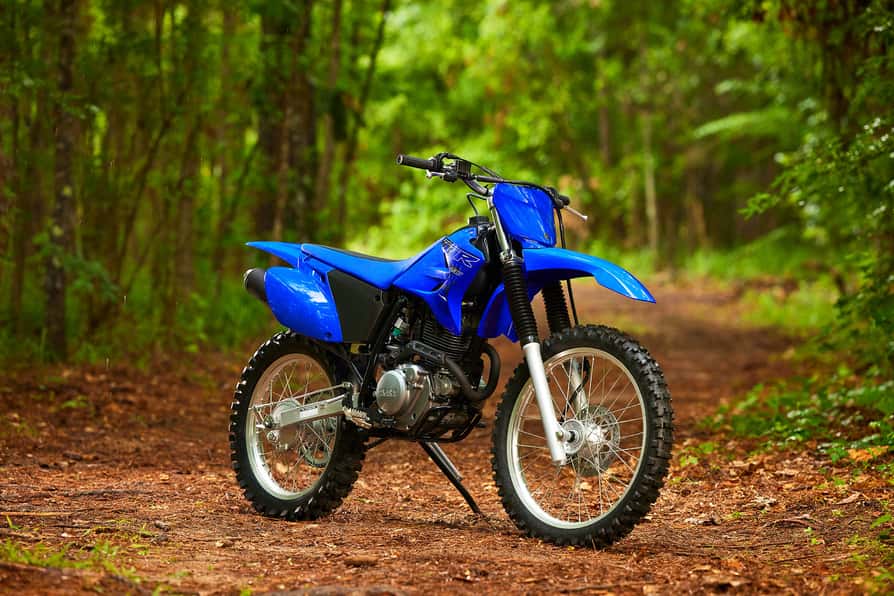

2022 Yamaha TT-R 230

  • 2022 Yamaha TT R 230
  • 2022 Yamaha TT R 230
  • 2022 Yamaha TT R 230
  • 2022 Yamaha TT R 230
  • 2022 Yamaha TT R 230
  • 2022 Yamaha TT R 230
  • 2022 Yamaha TT R 230
  • 2022 Yamaha TT R 230
  • 2022 Yamaha TT R 230
  • 2022 Yamaha TT R 230
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

 Riders of all skill levels will have a blast riding the easy-to-use, easy-to-start and easy-to-maintain TT-R230! The low seat height and smooth, torquey power are perfect for beginners and more experienced riders alike.

Specifications
Model
TT-R 230
Category Name
Motorcycles
Year
2022
Sale Type
New
Manufacturer
Yamaha
Color
Team Yamaha Blue
Engine Size
223 cc
Width
800mm (31.5")
Engine
4-stroke, air-cooled, SOHC, 2-valve, single
Height
1,180mm (46.5")
Length
2,065mm (81.3")
Colour(s)
Yamaha Racing Blue
Wheelbase
1,385mm (54.5")
Wet Weight
114kg (251 lb)
Final Drive
Chain
Seat Height
870mm (34.3")
Tires (Rear)
100/100-18
Transmission
Constant mesh, 6-speed
Brakes (Rear)
Drum
Fuel Delivery
Teikei Y26P
Fuel Capacity
8 litres (1.8 imp. gallons)
Tires (Front)
80/100-21
Brakes (Front)
220mm disc / twin piston caliper
Maximum Torque
1.9 kg-m (13.7 ft-lb)@ 6,500 rpm
Bore And Stroke
70 x 58mm
Ground Clearance
295mm (11.6")
Compression Ratio
9.5:1
Suspension (Rear)
Adjustable link-type Monocross / 220 mm (8.7") wheel travel
Suspension (Front)
Adjustable 36 mm fork / 240 mm (9.4") wheel travel
Ignition / Starting
CDI / Electric
highlights

Ra ENGINE

A peppy, air-cooled, 223 cc, SOHC, 2-valve, 4-stroke powerplant produces predictable power aimed at easing both beginner and intermediate riders into the fun and excitement of off-road riding.

Ra FRAME

The TT-R230's diamond-type steel frame features a compact, 1,385 mm (54.5") wheelbase to ensure superb manoeuvrability and responsive handling.
features and benefits

Key Features ​

  • Convenient, no-hassle electric starting.
  • Proven, 2-valve cylinder head design
  • Automatic cam chain tensioner
  • Teikei Y26P carburetor
  • Easy access oil filter & oil drain plug.
  • CDI (capacitor discharge ignition) system. ​

Engine

  • Super reliable, 196 cc, air-cooled, SOHC, 2-valve single delivers torquey low- and mid-range power perfectly suited to off-road exploring or riding around town.
  • Electric starting.
    • Fast, easy, no-hassle starting
  • Single overhead camshaft (SOHC), 2-valve cylinder head.
    • basic design for easy, less expensive maintenance
    • 34 mm intake and 28.5 mm exhaust valves
    • utilizes easy to adjust conventional rocker arms and screw-type tappet adjusters
  • Automatic cam chain tensioner.
    • reduces mechanical engine noise and maintenance
  • Aluminum cylinder features a cast iron liner.
    • cylinder can be "bored out" in the event of a problem (2 sizes available)
  • Lightweight ball-bearing-mounted crankshaft.
    • excellent durability
    • fast engine response
  • Engine counterbalancer.
    • reduces engine vibration to maximize rider comfort
  • 28 mm Teikei carburetor
    • carb-mounted choke knob
    • provides crisp throttle response
    • excellent fuel economy
  • Washable, foam air filter reduces maintenance costs.
  • Easy-access element-type oil filter and drain plug for fast oil changes.
  • Smooth-shifting 5-speed transmission with manual clutch.
    • optimized gear ratios for both on- and off-road riding
    • 5th gear is an overdrive gear to reduce engine rpm at highway speeds
  • Up-swept exhaust system
    • exhaust note is quiet and environmentally friendly
    • cleanable spark arrestor
    • heat shields on header pipe and muffler protect rider and passenger from accidental contact
  • Maintenance-free capacitor discharge ignition (CDI).
    • produces a strong spark for fast starts
    • provides precise ignition timing/mapping for optimum engine performance at all rpm
  • Rugged, aluminum engine skid plate

Chassis

  • Diamond-type steel frame features a compact, 1,385 mm (54.5") wheelbase to ensure superb manoeuvrability and responsive handling.
  • Rugged box-section steel swingarm features easy-to-use eccentric chain adjusters.
  • 36 mm leading axle front fork offers 240 mm (9.5") of wheel travel
    • confidence-inspiring control over rough terrain
  • Durable fork boots ensure excellent fork seal and stanchion tube protection.
  • Monocross link single shock rear suspension offers 220 mm (8.7") of wheel travel.
    • adjustable spring preload (threaded type, 12 mm of adjustability) allows the rider to tailor suspension to rider weight and terrain.
    • smooth, progressive suspension performance.
  • Front 220 mm disc with twin piston caliper ensures fast, fade-free stopping power.
  • Rear drum brake with easy-to-use wing nut adjuster.
  • 21" front and 18" rear aluminum rims & knobby tires.
    • lower unsprung weight for great suspension and handling performance
    • knobby tires provide excellent traction in the dirt.
  • Low 870 mm (34.3") seat height.
    • helps inspire rider confidence
  • 295 mm (11.6") of ground clearance.
    • serious ground clearance to tackle the tough terrain
  • 8-litre plastic fuel tank.
    • off/on/reserve fuel petcock for peace of mind
    • 1.8 litre reserve capacity
  • Aggressive styling highlights Yamaha's championship-winning YZ racing heritage.
    • rugged plastic body components resist damage in the event of a tip over
    • slim design bodywork allows excellent rider manoeuvrability & mobility

Details

  • "Bar-type" engine protector
  • Long, flat, YZ-style two-tone seat
  • Team Yamaha-inspired colour & graphics.
  • Motocross-style handlebar with reinforcing crossbar
  • Brake & clutch lever boots (rubber covers) help reduce dirt & mud build-up
  • Serrated, folding foot pegs provide excellent grip even in wet or muddy conditions
  • Folding gear shift lever tip & folding rear brake pedal tip help prevent damage in the event of a tip over
  • Heavy-duty "O" ring chain
  • Handlebar mounted push button ignition switch with red indicator light when power is active.
  • E10 (10% ethanol fuel) compatible fuel system components
  • Lightweight, sealed (spill proof) low maintenance battery (battery should be charged during winter storage)
